Trigger Directus Flow

Trigger a Directus flow with feedback.

Trigger flow interface

Inside of the interface you have the following options:

Option	Type	Description
Label	string	The label of the button.
Flow	string	The flow to execute. Must always be of type webhook.
Disable on Edit	string	Disables the button when there are pending changes.

Webhook

Input

When the user clicks on the button, you will receive the following payload:

{
  "path": "/trigger/430dab9a-bbb1-4cfc-818a-33efd2d7b17d",
  "query": {},
  "body": {
    "id": "1"
  },
}

The id will be the primary key of the record. This could be a number/string/UUID depending on what the primary key of your collection is.

Output

The flow could have 2 outputs:
1. a string, this will be used to open a file in a new tab (usefull for when you want to download the file right away)
2. an object with a message
The message could be created with a run script:
Download file operation in Directus

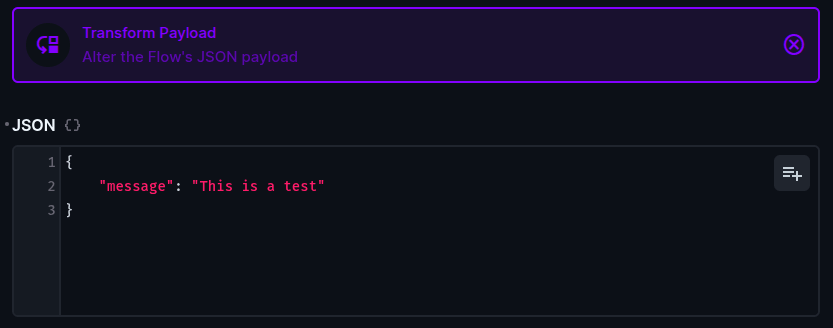

The message could be created with a transform payload:
Download file operation in Directus

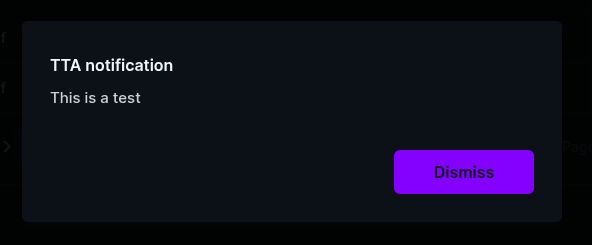

After the flow ran and the result was a message object, the following dialog will be shown:
Download file operation in Directus

The following options are supported:

Option	Type	Description
Title	string	The title of the dialog
message	string	The message displayed in the dialog
redirectTarget	string	Decides how to open the redirectURL. Can be "current" for opening the url in the current tab, otherwise a new tab will be opened.
redirectURL	string	The url that will be opened after closing the dialog. Can be a relative URL (/admin/settings) or a full URL (https://texttoanything.nl).
